Maple Leaf Goose Adjustable Solar Panel Ground Mount | 30° Summer - 60° Winter Adjustable Angle

Buy 2 Save 5%Buy 3+ Save 10%New
filler

Configuration: Goose Mount
Price:
Sale price$224.99

Buy in monthly payments with on orders over $300. Learn more

Shipping calculated at checkout

 More payment options

Description

Download

Introducing the Maple Leaf Canada Goose Adjustable Ground Mount. The unique adjustable tilting structure design increases optimum solar energy production capacity when compared to the fixed-angle design of other mounts, ensuring outstanding performance in all seasons. This adjustable solar panel ground mounting solution is compatible with all types of solar panel brands. Each section of cross-rail allows for up to 1700mm of total solar panel width, allowing for unparalleled customization for your unique needs.

The mounting system is simple to install, making it an ideal choice for large properties, farms, and other applications. It features stainless steel fasteners for durability and strength, and precision machining for easy assembly. The rails and beams are manufactured from high-strength extruded aluminum to withstand all weather conditions and harsh environments, assuring longevity and dependability regardless of the installation location.

Key Features:

  • Robust Safety Features: Engineered to withstand the elements, our mount is built to last. With a design capable of enduring 1/50 Hourly Wind Pressure of 0.43 kPa, 1/50 Ground Snow Load of 1.6 kPa, and 1/50 Associated Rain Load of 0.1 kPa, you can trust in its safety and stability even in the harshest weather conditions.
  • Accommodates Large Panels: Designed to accommodate large solar panels, our mount offers versatility and scalability to meet your energy needs. Whether you're looking to power a residential property or a commercial enterprise, our mount can handle the job with ease.
  • Enhanced Solar Energy Collection: The Maple Leaf Canada Goose Ground Mount boasts a unique tilting structure that significantly increases optimum solar energy production compared to standard fixed configurations, ensuring exceptional performance throughout the year.
  • Compatibility and Versatility: This adjustable mounting bracket is compatible with all major solar panel brands, offering a maximum width of up to 1700mm per cross-rail section to accommodate various setups. Its adaptable design makes it perfect for large properties, farms, and more.
  • Adjustable Angle: Customize your solar panel setup with ease, thanks to the adjustable angle feature ranging from 30 degrees to 60 degrees. This flexibility allows for optimal sunlight exposure, enhancing energy efficiency and performance throughout the day.

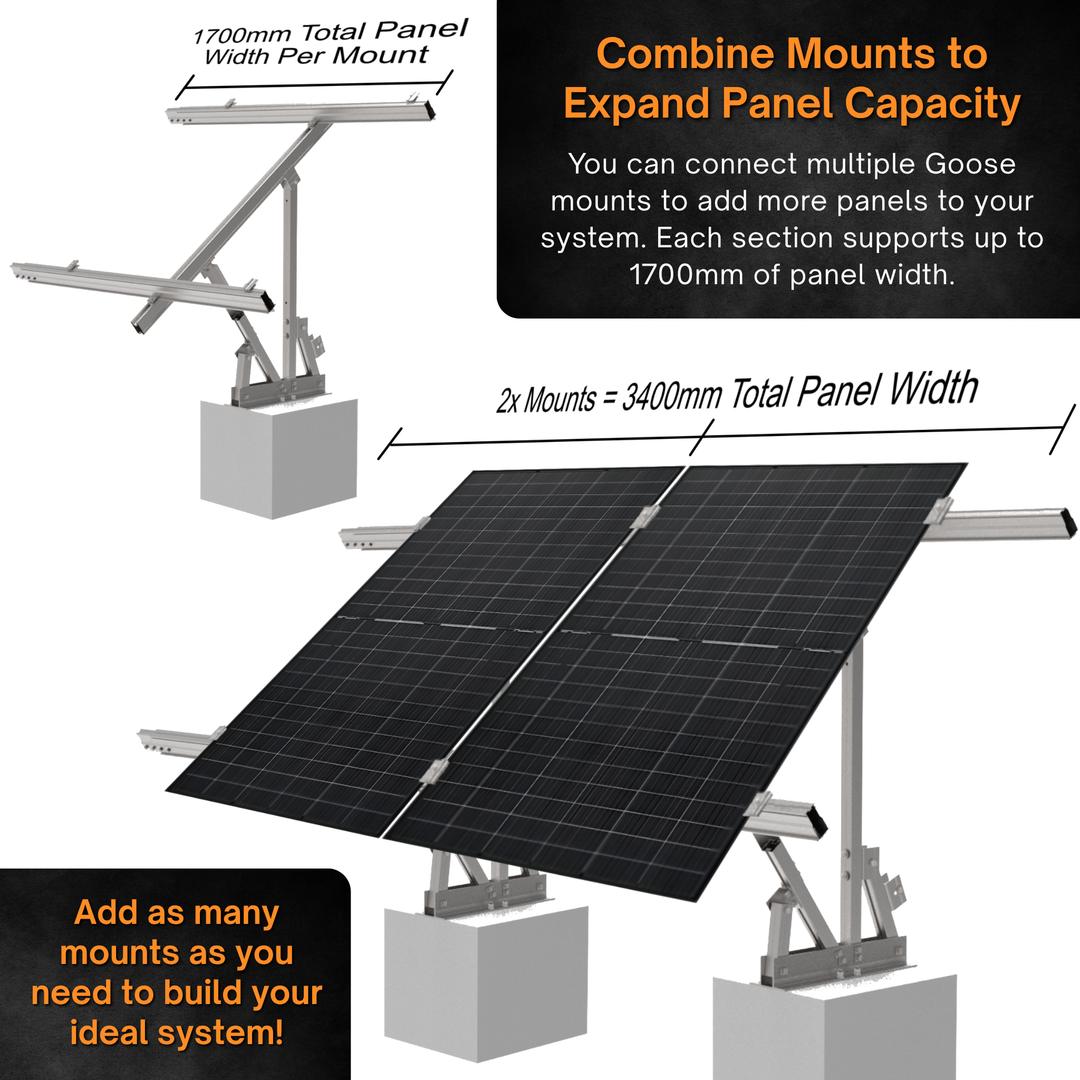

  • Customizable and Expandable: The Maple Leaf Canada Goose Adjustable Ground Mount can be mounted using a variety of different base styles, including ballast, poured concrete, concrete blocks, and more. Each ground mount can be expanded using the included cross-rail splice connectors to create a continuous row of solar panels. Connect as many Goose mounts as you need to create seamless rows of solar panels.
  • Comprehensive Warranty: Rest easy with a comprehensive 25-year warranty, offering assurance of top-notch product quality and durability. This warranty emphasizes our commitment to customer satisfaction and long-term reliability.
  • Easy Installation and Support: With simple assembly instructions, you can have your solar panels up and running in no time. Plus, assistance is readily available by contacting the Solar Power Store customer support team.

Product Specification

  • Dimension(L*W*H)mm/in: 1607*1702*606 mm/ 63*67*24 in

  • Weight:
    • Base Goose Mount Kit: 17.5kg (38.6lbs)
    • Hurricane Kit: 20kg (44.1lbs)
  • Wind Pressure: 105 mph
  • Snow Load: 860bs per column
  • Max Panel Quantity & Size Compatibility: Up to 1700mm total in width
  • Warranty: 25 years
  • Solar Array Tilt Adjustability: 30° to 60°
